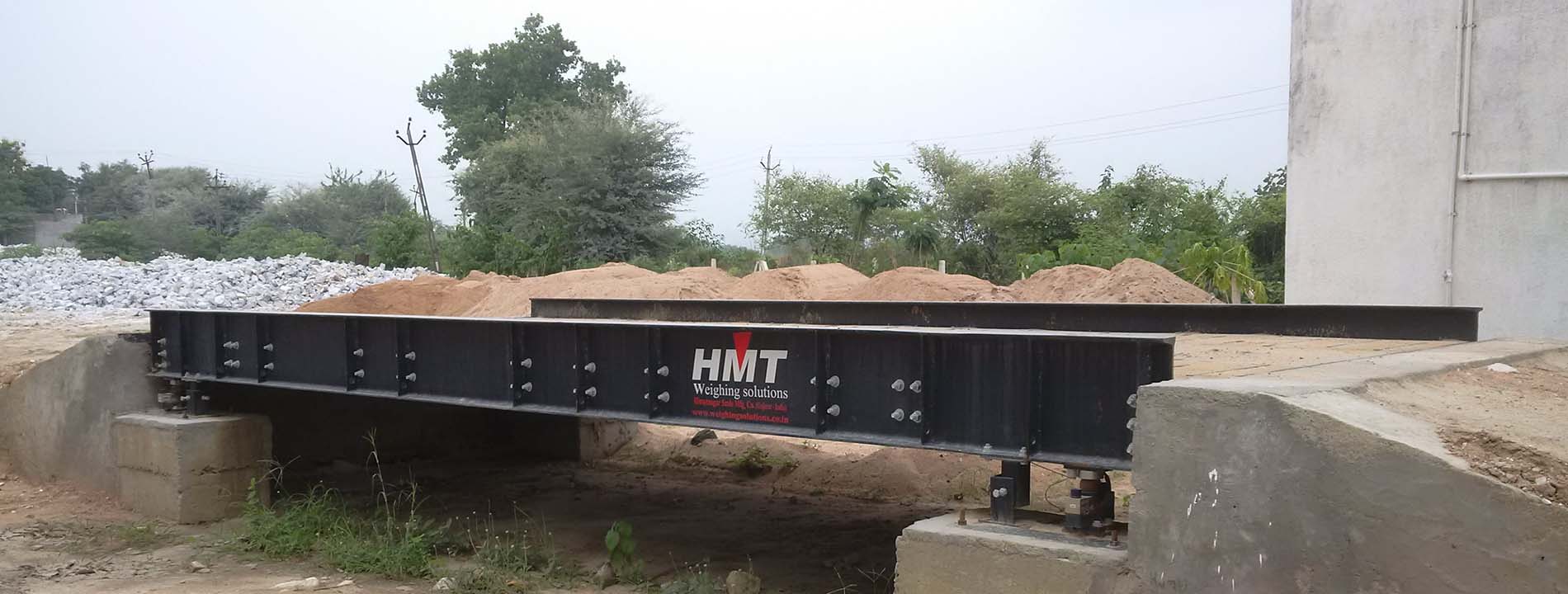

Above Ground (Pit less) weighbridge are manufactured from IS:2062 mild structure steel consisting of main beams thoroughly welded with cross beams to form a heavy duty rigid structure. Mild Steel Plate are welded on it to complete the weighbridge deck with anti skid lines or chequered plate. Mild Steel Plate have a bottom beams support at the places truck will be moving regularly which gives extra support and strength to the weighbridge deck. It is created in the fully welded modular formation which can withstand heavy impact and overloads on the platform.
Salient Features:
- • Lower Civil construction cost
- • Low Profile Weighbridge Deck
- • Easy to maintain due to accessibility of electronics components above ground
- • No Need for Guiding Rails, Main Beams acts as guiding rail
- • Water drainage is easy to maintain
- • Lesser cost for maintenance
|
Model no |
Capacity (Ton) |
Least Count (Kg) |
Platform Size (Meters) |
|---|---|---|---|
| HWC – PL – 30 | 30Ton | 5Kg | 6.6 x 2.7m 7.5 x 3m |
| HWC – PL – 40 | 40Ton | 5kg | 7.5 x 3m 9 x 3m |
| HWC – PL – 50 | 50Ton | 5kg | 7.5 x 3m 9 x 3m 10 x 3m 12 x 3m |
| HWC – PL – 60 | 60Ton | 5kg / 10kg | 12 x 3m 16 x 3m 18 x 3m |
| HWC – PL – 80 | 80Ton | 10kg | 12 x 3m 16 x 3m 18 x 3m 24 x 3m |
| HWC – PL – 100 | 100Ton | 10kg / 20kg | 16 x 3m 18 x 3m 20 x 3m 18 x 3.5m 20 x 3.5m 18 x 4m 24 x 3m |
| HWC – PL – 120 | 120Ton | 20kg | 18 x 3m 20 x 3.5m |
Weighing Components
Load cell
- o Compression Load cell
-
- • Water proof IP68 / IP69K approval
- • Stainless Steel Construction
- • OIML R60 Approved
- • NTEP Approved
- o Double Ended Shear Beam Load cell with ball arrangement
-
- • Water proof IP68 grade
- • Alloy Steel Construction
Weighbridge Indicators
- • No Need for computer system
- • Inbuilt storage of 200,000 records
- • Support Up to 6 load cells (350 ohm) connected in parallel 18 load cells (1100 ohm)
- • Field programmable consolidated fields
- • Dynamic password protected system for calibration and parameter access.
- • High sampling rate per micro second
- • Dual stage calibration
- • RS232C/RS485 interface with continuous data output or command protocol
- • USB port for backup of data in computer or pen drive
- • Full report generation features and ability to uplink data to MIS System and communicate with SAP & ERP.
- • Microprocessor based weighbridge controller
- • Support Up to 6 load cells (350 ohm) connected in parallel 18 load cells (1100 ohm)
- • Dual Stage calibration
- • Communication protocol – RS232C (Optional - RS485, Ethernet, Modbus RTU)
- • It can be linked with Truck Management Software
- • Ability to uplink data to MIS system and communicate with SAP & ERP
Junction Box
- • Support up to 4 load cells
- • IP 65 grade
- • Digital Trim port for each load cell
- • Inbuilt Surge Arrestor for each loadcell
- • Stainless Steel Construction
- • Support up to 6 load cells
- • IP 65 grade
- • Digital Trim port for each load cell
- • Inbuilt Surge Arrestor
- • Stainless Steel Construction
- • Support up to 8 load cells
- • IP 65 grade
- • Digital Trim port for each load cell
- • Inbuilt Surge Arrestor
- • Stainless Steel Construction
- • Support up to 10 load cells
- • IP 65 grade
- • Digital Trim port for each load cell
- • Inbuilt Surge Arrestor
- • Stainless Steel Construction
Remote Display
- • 7 segment RED LED based display with 1” character size
- • It can be connected to RS232C port of indicator and communicate upto 10meters
- • RD 70 doesn’t require external power supply.
- • 7 segment RED LED based display with 2.3” character size
- • It can be connected to RS232C port of indicator and communicate up to 30meters
- • It requires external power supply
- • Wireless option available (Model no. RD 90 WIFI)
- • 7 segment RED LED based display with 4” character size
- • It can be connected to RS232C port of indicator and communicate up to 30meters
- • It requires external power supply
- • Wireless option available (Model no. RD 100 WIFI)
Accessories
- • Mild Steel Foundation Base
- • Mild Steel Ramps
- • Truck Positioning System
- • Boom Barrier
- • Traffic Lights
- • RFID Tags
