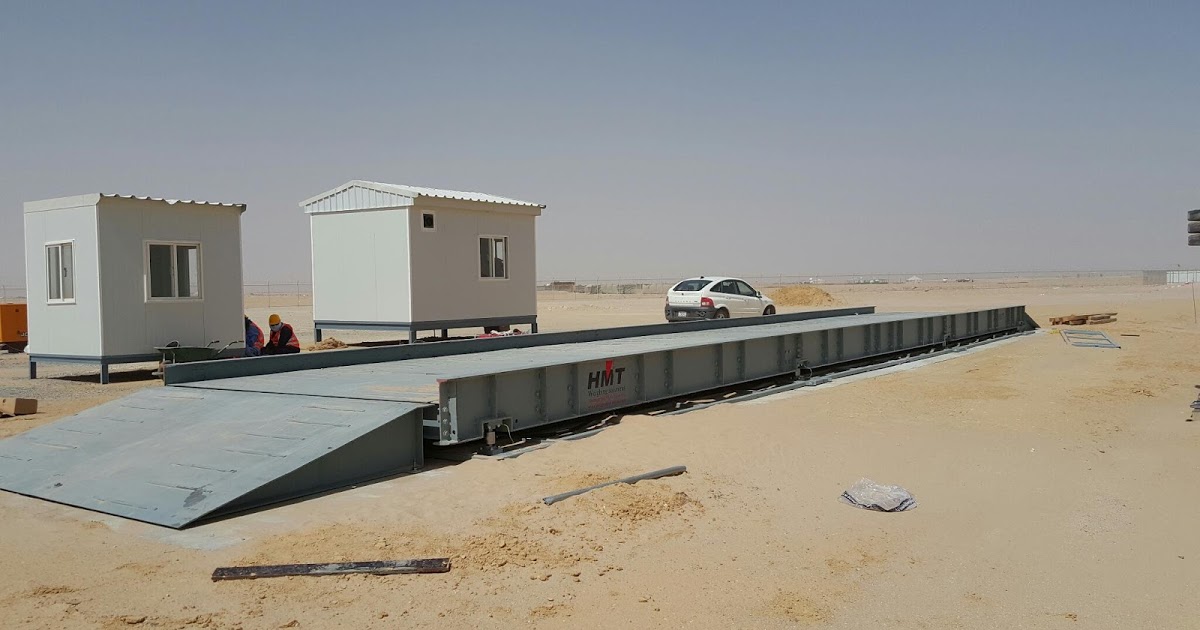

The scale of the series HWC – M are mild steel weighbridge with a modular building, to be used in the weighing of the vehicles allowed to circulate on road
Salient Features:
- Easy to ship and cost effective in transportation & installation
- Each Modules are interconnected with bolts
- Low Profile Weighbridge Deck
- Easy Access of electronics components from the top and side.
- Weighbridge deck will be mounted on the ground level or above ground
TRANSPORT
The modular structure facilitates an easy transport and assembly. The modules and head-boards design make possible the inclusion of any of the scales of the series HWC - M in a container OPEN TOP of 20 feet.
PAINTING OPTIONS
- Synthetic Enamel Finish
- Epoxy Polyamide Finish (Anti – Corrosive)
- Polyurethane Finish
- Galvanizing of full deck
|
Model no |
Capacity (Ton) |
Least Count (Kg) |
Platform Size (Meters) |
Modules |
|---|---|---|---|---|
| HWC – M – 40 | 40Ton | 5Kg | 9 x 3m | 4 Modules |
| HWC – M – 50 | 50Ton | 5kg | 9 x 3m 10 x 3m 12 x 3m |
4 Modules 4 Modules 4 Modules |
| HWC – M – 60 | 60Ton | 5kg / 10kg | 12 x 3m 16 x 3m 18 x 3m |
4 Modules 6 Modules 6 Modules |
| HWC – M – 80 | 80Ton | 10kg | 12 x 3m 16 x 3m 18 x 3m 24 x 3m |
4 Modules 6 Modules 6 Modules 8 Modules |
| HWC – M – 100 | 100Ton | 10kg/20kg | 16 x 3m 18 x 3m 20 x 3m 24 x 3m |
4 Modules 6 Modules 6 Modules 8 Modules |
| HWC – M – 120 | 120Ton | 20kg | 18 x 3m 20 x 3.5m |
6 Modules 8 Modules |
Weighing Components
Load cell
- o Compression Load cell
-
- • Water proof IP68 / IP69K approval
- • Stainless Steel Construction
- • OIML Approved
- • NTEP Approved
- o Double Ended Shear Beam Load cell with ball arrangement
-
- • Water proof IP68 grade
- • Alloy Steel Construction
- o Digital Compression Load cell
-
- • Digital (Pre-Calibrated) Load cell
- • Stainless Steel Construction
- • OIML Approved
- • NTEP Approved
- • RS485 Modbus RTU Bi-Directional Communication
- o Digital Double Ended Shear Beam Load cell with Ball Arrangement
-
- • Digital (Pre-Calibrated) Load cell
- • Alloy Steel Construction
- • RS485 communication
Weighbridge Indicators
- • No Need for computer system
- • Inbuilt storage of 200,000 records
- • Support Up to 6 load cells (350 ohm) connected in parallel 18 load cells (1100 ohm)
- • Field programmable consolidated fields
- • Dynamic password protected system for calibration and parameter access.
- • High sampling rate per micro second
- • Dual stage calibration
- • RS232C/RS485 interface with continuous data output or command protocol
- • USB port for backup of data in computer or pen drive
- • Full report generation features and ability to uplink data to MIS System and communicate with SAP & ERP.
- • Microprocessor based weighbridge controller
- • Support Up to 6 load cells (350 ohm) connected in parallel 18 load cells (1100 ohm)
- • Dual Stage calibration
- • Communication protocol – RS232C (Optional - RS485, Ethernet, Modbus RTU)
- • It can be linked with Truck Management Software
- • Ability to uplink data to MIS system and communicate with SAP & ERP
Junction Box
- • Support up to 4 load cells
- • IP 65 grade
- • Digital Trim port for each load cell
- • Inbuilt Surge Arrestor for each loadcell
- • Stainless Steel Construction
- • Support up to 6 load cells
- • IP 65 grade
- • Digital Trim port for each load cell
- • Inbuilt Surge Arrestor
- • Stainless Steel Construction
- • Support up to 8 load cells
- • IP 65 grade
- • Digital Trim port for each load cell
- • Inbuilt Surge Arrestor
- • Stainless Steel Construction
- • Support up to 10 load cells
- • IP 65 grade
- • Digital Trim port for each load cell
- • Inbuilt Surge Arrestor
- • Stainless Steel Construction
Remote Display
- • 7 segment RED LED based display with 1” character size
- • It can be connected to RS232C port of indicator and communicate upto 10meters
- • RD 70 doesn’t require external power supply.
- • 7 segment RED LED based display with 2.3” character size
- • It can be connected to RS232C port of indicator and communicate up to 30meters
- • It requires external power supply
- • Wireless option available (Model no. RD 90 WIFI)
- • 7 segment RED LED based display with 4” character size
- • It can be connected to RS232C port of indicator and communicate up to 30meters
- • It requires external power supply
- • Wireless option available (Model no. RD 100 WIFI)
Accessories
- • Mild Steel Foundation Base
- • Mild Steel Ramps
- • Truck Positioning System
- • Boom Barrier
- • Traffic Lights
- • RFID Tags
